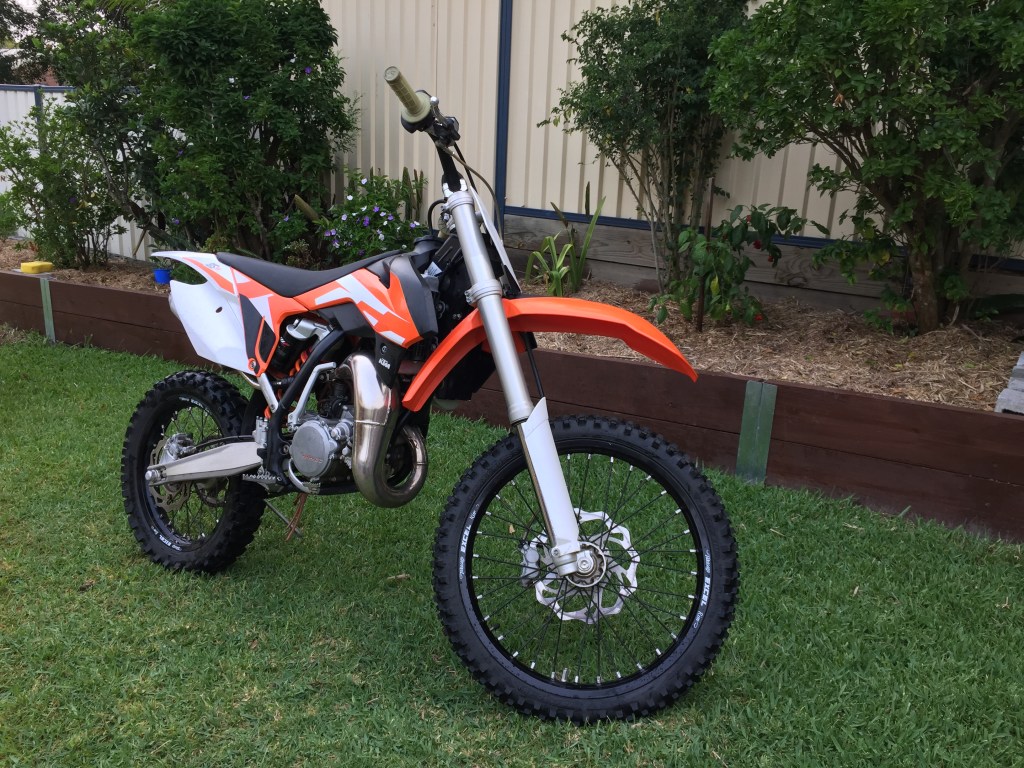

KTM SX85 Big Wheel

“Whippa” Specifications 2016

Engine

  • Engine type: Single cylinder, two-stroke
  • Displacement: 84.9 cc (5.18 cubic inches)
  • Bore x stroke: 47.0 x 49.0 mm (1.9 x 1.9 inches)
  • Fuel system: Carburettor
  • Lubrication system: Mixture oil lubrication
  • Cooling system: Liquid
  • Gearbox: 6-speed
  • Transmission type, final drive: Chain

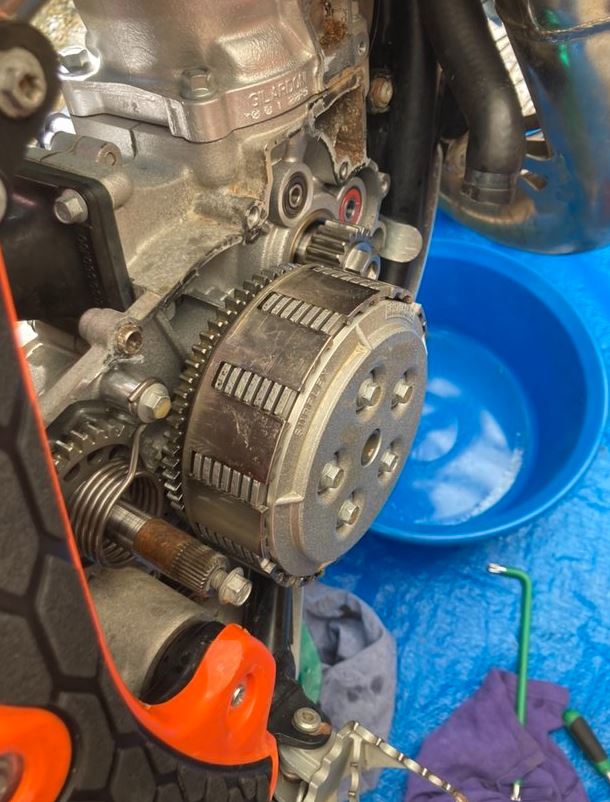

  • Clutch: Wet, multi-disc clutch, Formula hydraulics
  • Driveline: 1/2  x  5/16

Chassis, suspension, brakes and wheels

  • Frame type: Central-tube frame with double-cradle
  • Front suspension: WP upside-down Ø 43 mm
  • Rear suspension: WP PDS shock absorber
  • Front wheel travel: 270 mm (10.6 inches)
  • Rear wheel travel: 300 mm (11.8 inches)

Brakes

  • Front brakes: Single disc. Four-piston calipers.
  • Diameter: 220 mm (8.7 inches)
  • Rear brakes: Single disc. Two-piston calipers.
  • Diameter: 210 mm (8.3 inches)

Dimensions

  • Rake (fork angle): 24 degrees
  • Seat height: 855 mm (33.7 inches)
  • Ground clearance: 352 mm (13.9 inches)
  • Wheelbase: 1290 mm (50.8 inches)
  • Fuel capacity: 5 Ltr (1.32 gallons)
  • Dry weight: 67.5 kg (148.8 pounds)

Extras / Accessories

  • Acerbis KTM frame grip protector
  • Hour meter
  • Shorty levers
  • Acerbis aluminium hand guards
  • Chain Guide protector
  • Bash plate
  • Fatty pipe (future mod)
  • Side stand (future mod)
  • Flywheel (future mod)
